Modal Window

Overview

Modal Window displays a popup with a title, description, icon, and confirm or cancel buttons. It supports multiple animation styles, custom content, and navigation options.

The component is ideal for confirmations, warnings, dialogs, item details, or any focused user interaction that requires pausing background UI.

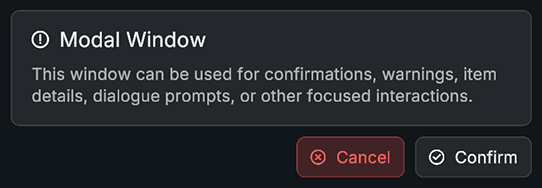

Preview

Properties

Content

Name	Type	Description
`icon`	`Sprite`	Icon shown at top of modal
`title`	`string`	Title text
`description`	`string`	Body description text
`customContent`	`bool`	If enabled, content will not be auto assigned

Animation

Name	Type	Description
`animationType`	`AnimationType`	None, Fade, Scale, Slide
`animationDuration`	`float`	Duration of open or close animation
`animationCurve`	`AnimationCurve`	Easing curve
`scaleFrom`	`float`	Starting scale when using Scale animation
`slideOffset`	`Vector2`	Offset used by Slide animation

Settings

Name	Type	Description
`useUnscaledTime`	`bool`	Use unscaled time for animation
`closeOnConfirm`	`bool`	Closing after confirm button is pressed
`closeOnCancel`	`bool`	Closing after cancel button is pressed
`startBehavior`	`StartBehavior`	Open or Disabled on start
`closeBehavior`	`CloseBehavior`	Disable or Destroy on final close
`navigationMode`	`NavigationMode`	Free or Focused navigation restriction

References

Name	Type	Description
`contentParent`	`RectTransform`	Container holding visual content
`iconImage`	`Image`	Icon renderer
`titleText`	`TextMeshProUGUI`	Title label
`descriptionText`	`TextMeshProUGUI`	Description label
`confirmButton`	`Button`	Confirm button
`cancelButton`	`Button`	Cancel button

Events

Name	Type	Description
`onOpen`	`UnityEvent`	Called after modal opens
`onClose`	`UnityEvent`	Called after modal closes
`onConfirm`	`UnityEvent`	Called when confirm button is pressed
`onCancel`	`UnityEvent`	Called when cancel button is pressed

Public Methods

Name	Parameters	Description
`Open()`	None	Plays open animation and shows modal
`Close()`	None	Plays close animation and hides or destroys modal
`SetTitle(text)`	`string`	Updates title text
`SetDescription(text)`	`string`	Updates description text
`SetIcon(sprite)`	`Sprite`	Updates icon and visibility
`IsOpen`	Returns true if modal is currently open

Code Example

ModalWindowExample.cs

using UnityEngine;
using Evo.UI;

public class ModalWindowExample : MonoBehaviour
{
    public ModalWindow modal;

    void Start()
    {
        // Update content
        modal.SetTitle("Delete File");
        modal.SetDescription("Are you sure you want to delete this file?");
        modal.SetIcon(warningSprite);

        // Add events
        modal.onConfirm.AddListener(() =>
        {
            Debug.Log("Confirmed");
        });

        modal.onCancel.AddListener(() =>
        {
            Debug.Log("Cancelled");
        });

        // Open modal
        modal.Open();
    }

    public void ShowModal()
    {
        modal.Open();
    }

    public void HideModal()
    {
        modal.Close();
    }
}
