Dropdown

Overview

Dropdown displays a list of selectable items inside an animated panel. It supports icons, auto positioning based on screen space, and multiple animation types such as fade, scale, and slide.

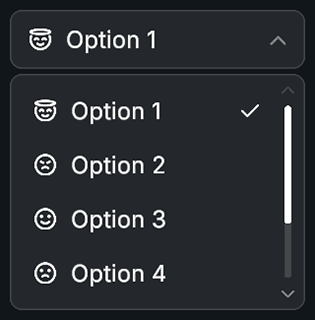

Preview

Customize Item

Locate the default item prefab in the References foldout
Open the prefab and customize it as needed

Create New Prefabs

You can create different item prefabs and use them on different dropdowns. To create a new item prefab:

Locate the default item prefab in the References foldout
Duplicate the prefab (this is the fastest way to customize)
Open the new prefab and customize it to your liking

Properties

Item List

Name	Type	Description
`selectedIndex`	`int`	Index of currently selected item
`items`	`List<Item>`	List of dropdown items

Item Layout

Name	Type	Description
`itemSpacing`	`int`	Vertical spacing between item buttons
`itemHeight`	`float`	Height of each item button
`padding`	`RectOffset`	Inner padding of the items area

Settings

Name	Type	Description
`scrollbarPosition`	`ScrollbarPosition`	Scrollbar positioning method
`maxHeight`	`float`	Maximum scroll view height
`blockUIWhileOpen`	`bool`	Creates a fullscreen blocker behind dropdown
`closeOnItemSelect`	`bool`	Closes dropdown on item selection
`closeOnClickOutside`	`bool`	Closes dropdown when clicking outside
`rotateArrow`	`bool`	Rotates arrow when dropdown opens
`arrowRotation`	`float`	Rotation applied when open

Animation

Name	Type	Description
`animationType`	`AnimationType`	Fade, Scale, or Slide
`animationDuration`	`float`	Duration of open and close animations
`animationCurve`	`AnimationCurve`	Controls easing behavior

References

Name	Type	Description
`itemPrefab`	`GameObject`	Prefab for item entries
`itemParent`	`Transform`	Parent transform for item objects
`headerButton`	`Button`	Header button controlling open and close
`headerArrow`	`Image`	Arrow graphic on header (optional)
`scrollRect`	`ScrollRect`	Scroll view containing items
`canvasGroup`	`CanvasGroup`	Controls visibility and fading

Events

Name	Type	Description
`onItemSelected`	`UnityEvent<int>`	Called when an item is selected
`onOpen`	`UnityEvent`	Called when dropdown opens
`onClose`	`UnityEvent`	Called when dropdown closes

Public Methods

Name	Parameters	Description
`Toggle()`	None	Opens or closes dropdown
`Open()`	None	Opens dropdown with animation
`Close()`	None	Closes dropdown with animation
`UpdateUI()`	None	Updates header and layout
`SelectItem(index, triggerEvents)`	`int, bool`	Selects item at index
`SelectItem(item, triggerEvents)`	`Item, bool`	Selects item by reference
`SelectItem(label, triggerEvents)`	`string, bool`	Selects item by label
`AddItem(item, generate)`	`Item, bool`	Adds item optionally generating UI
`AddItem(label, icon, generate)`	`string, Sprite, bool`	Adds item by label and icon
`AddItems(newItems)`	`params Item[]`	Adds multiple items
`AddItems(labels)`	`params string[]`	Adds multiple string items
`RemoveItem(index)`	`int`	Removes item at index
`RemoveItem(label)`	`string`	Removes item by label
`ClearAllItems()`	None	Removes all items
`SortAlphabetically(ascending)`	`bool`	Sorts items

Code Example

DropdownExample.cs

using UnityEngine;
using Evo.UI;

public class DropdownExample : MonoBehaviour
{
    public Dropdown dropdown;

    void Start()
    {
        // Add item
        dropdown.AddItem("New Item");

        // Add item with icon
        Sprite myIcon = null;
        dropdown.AddItem("New Item", myIcon);

        // Add items
        dropdown.AddItems("Option A", "Option B", "Option C");

        // Remove items
        dropdown.RemoveItem("Item Label"); // using label
        dropdown.RemoveItem(0); // using index

        // Open event
        dropdown.onOpen.AddListener(() =>
        {
            Debug.Log("Dropdown opened");
        });

        // Close event
        dropdown.onClose.AddListener(() =>
        {
            Debug.Log("Dropdown closed");
        });

        // Select event
        dropdown.onItemSelected.AddListener(index =>
        {
            Debug.Log("Selected index: " + index);
        });

        // Manually select item
        dropdown.SelectItem(1);

        // Open dropdown
        dropdown.Open();
    }
}
