List View

Heads up!

List View is currently in preview. Future updates may introduce major changes.

Overview

List View is a fully dynamic table component that supports flexible columns, dynamic row generation, icons, custom fonts, alternating row colors, borders, and full styling through the ListViewStyle system or Styler Presets.

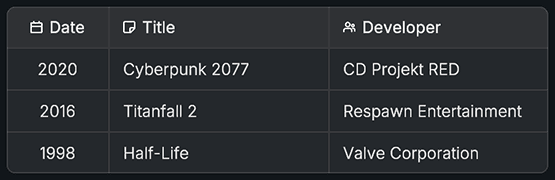

Preview

It automatically rebuilds itself when data changes, uses column width calculations based on fixed or flexible sizing, and supports CSV import and export.

CSV Support

List View can:

Import CSV strings
Load CSV files
Automatically build columns from headers
Update existing rows or replace entirely
Export all data to CSV format

Properties

Content

Name	Type	Description
`columns`	`List<ListViewColumn>`	Column definitions
`rows`	`List<ListViewRow>`	Row data with values and icons

Style Settings

Name	Type	Description
`style`	`ListViewStyle`	Controls fonts, colors, spacing, borders
`stylingSource`	`ListViewStyle.StylingSource`	Custom or StylerPreset
`styleMapping`	`List<ListViewStyle.Mapping>`	Maps style fields to styler IDs
`stylerPreset`	`StylerPreset`	Reference used when stylingSource is StylerPreset

References

Name	Type	Description
`parentRect`	`RectTransform`	If assigned, ListView updates its height based on total content

Classes

ListViewColumn

Field	Type	Description
`columnName`	`string`	Header label
`columnIcon`	`Sprite`	Optional icon
`width`	`float`	Width when not flexible
`useFlexibleWidth`	`bool`	Distribute remaining space
`alignment`	`TextAnchor`	Alignment for icon and text

ListViewRow

Field	Type	Description
`values`	`List<string>`	Text values per column
`icons`	`List<Sprite>`	Icons per column
`SetCell(index, value, icon)`	Assign value and icon
`GetIcon(index)`	Returns column icon

ListViewStyle

Contains:

Fonts
Font sizes
Font styles
Colors
Backgrounds
Spacing and padding
Border settings
Mapping IDs for Preset styling
Deep copy utilities

Public Methods

Structure and Data

Name	Parameters	Description
`AddColumn(column)`	`ListViewColumn`	Adds a new column
`RemoveColumn(index)`	`int`	Removes column and trims existing rows
`AddRow(row)`	`ListViewRow`	Adds a row
`AddRow(values)`	`params string[]`	Adds a row from string values
`RemoveRow(index)`	`int`	Removes one row
`ClearRows()`	None	Removes all rows

Cells

Name	Parameters	Description
`SetCellValue(row, col, value)`	`int, int, string`	Updates text
`SetCellData(row, col, value, icon)`	`int, int, string, Sprite`	Updates text and icon
`GetCellValue(row, col)`	`int, int`	Gets text

Styling

Name	Parameters	Description
`UseAlternatingRowColor(value)`	`bool`	Enables alternating background colors
`Refresh()`	None	Updates layout and content

CSV

Name	Parameters	Description
`ImportFromCSV(csv, hasHeaders, clearExisting)`	`string, bool, bool`	Imports data
`ExportToCSV(includeHeaders)`	`bool`	Returns CSV string
`SaveToCSVFile(path, includeHeaders)`	`string, bool`	Saves CSV file
`LoadFromCSVFile(path, hasHeaders, clearExisting)`	`string, bool, bool`	Loads CSV file

Code Example

ListViewExample.cs

using UnityEngine;
using Evo.UI;

public class ListViewExample : MonoBehaviour
{
    public ListView listView;

    void Start()
    {
        // Add columns
        listView.AddColumn(new ListViewColumn
        {
            columnName = "Name",
            useFlexibleWidth = true,
            alignment = TextAnchor.MiddleLeft
        });

        listView.AddColumn(new ListViewColumn
        {
            columnName = "Age",
            width = 80,
            useFlexibleWidth = false
        });

        // Add rows
        listView.AddRow("Alice", "23");
        listView.AddRow("Bob", "31");

        // Modify a cell
        listView.SetCellValue(1, 1, "32");

        // Import CSV
        string csv = "Name,Score\nPlayer A,120\nPlayer B,95";
        listView.ImportFromCSV(csv);

        // Export CSV
        string exported = listView.ExportToCSV();
        Debug.Log(exported);

        // Refresh manually if needed
        listView.Refresh();
    }
}
