Procedural Rect

Overview

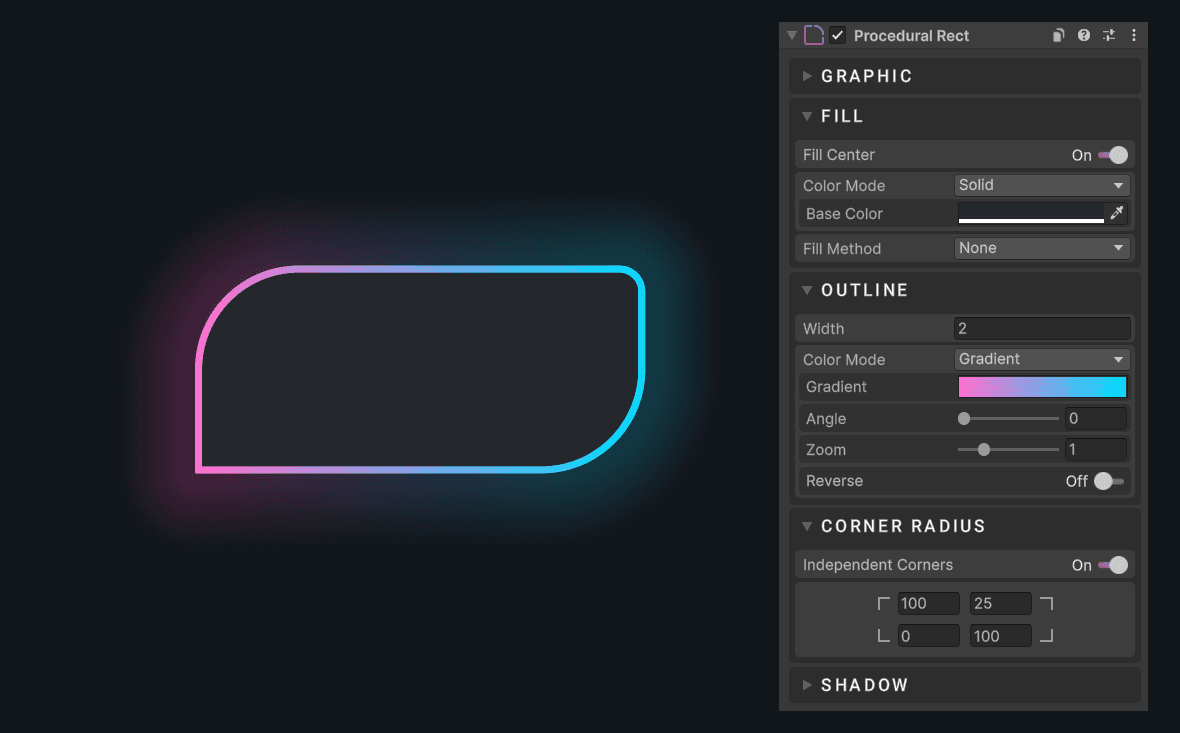

Procedural Rect is a custom MaskableGraphic that renders smooth, anti-aliased rounded rectangles using a signed distance field (SDF) shader. It replaces sprite-based UI panels with a fully procedural alternative, supporting fills, outlines, inner shadows, outer shadows, and corner radii — all without any textures.

Color for each layer can be a flat color, a gradient, or inherited from the graphic's base color. Materials and gradient textures are pooled automatically so identical configurations share a single GPU resource.

This component is availabe to preview/test and will replace the background/border handling in version 2.0 once it's thoroughly tested in multiple environments.

Usage

Add the Procedural Rect component to any UI object

Customize the component to your needs

Fill Center can be disabled if you only want to draw an outline or shadow

Notes

Materials and gradient textures are reference-counted and shared across all ProceduralRect instances with identical settings, minimising draw calls and memory usage.
The component requires TexCoord1, TexCoord2, TexCoord3, Tangent, and Normal canvas shader channels. These are enabled automatically on the parent Canvas.
The component accepts a source image (sprite) graphic, so it can be used for masking. For example, you can assign a profile picture and increase the corner radius to get a perfect masking with better performance.

Properties

Rendering

Name	Type	Description
`bypassPostProcessing`	`bool`	Renders using the bypass shader pass so the graphic is unaffected post-processing volumes. HDRP only.

Graphic

Name	Type	Description
`sprite`	`Sprite`	Optional source sprite image rendered inside the rect
`scaleMode`	`ScaleMode`	How the sprite is scaled: `Cover`, `Fit`, or `Stretch`
`raycastMode`	`RaycastMode`	Raycast detection method: `None`, `Standard` (rect bounds), or `Shape` (precise rounded/clipped geometry)

Fill

Name	Type	Description
`fillCenter`	`bool`	Fill the interior of the shape. Disable to render only the outline
`softness`	`float`	Extra edge feathering in pixels beyond the default 1 px AA band
`fillColorMode`	`ColorMode`	`Base`, `Custom`, or `Gradient`
`fillColor`	`Color`	Solid fill color (used when mode is `Custom`)
`fillGradient`	`Gradient`	Gradient used when mode is `Gradient`
`fillGradientAngle`	`float`	Rotation of the gradient in degrees (0–360)
`fillGradientZoom`	`float`	Zoom factor — values above 1 compress the gradient, below 1 stretch it
`fillGradientReverse`	`bool`	Swap the gradient start and end colors

Outline

Name	Type	Description
`outlineWidth`	`float`	Width in pixels, drawn inward from the shape edge
`outlineColorMode`	`ColorMode`	`Base`, `Custom`, or `Gradient`
`outlineColor`	`Color`	Solid outline color
`outlineGradient`	`Gradient`	Gradient used when mode is `Gradient`
`outlineGradientAngle`	`float`	Rotation of the gradient in degrees
`outlineGradientZoom`	`float`	Zoom factor for the gradient
`outlineGradientReverse`	`bool`	Swap the gradient start and end colors

Corner Radius

Name	Type	Description
`radiusMode`	`RadiusMode`	`Pixels` or `Percentage` (percentage of half the shortest side)
`independentCorners`	`bool`	Allow each corner to have a different radius
`squircleCorners`	`bool`	Use smooth squircle corners instead of standard circular rounding
`cornerRadius`	`Vector4`	Radii for all four corners: X = Top Left, Y = Top Right, Z = Bottom Right, W = Bottom Left

Clipping

Name	Type	Description
`clipMethod`	`ClipMethod`	`None`, `Horizontal`, `Vertical`, or `Radial360`
`clipOrigin`	`int`	Edge or quadrant from which clipping begins (range depends on method)
`clipAmount`	`float`	How much of the shape is visible (0–1)
`clipClockwise`	`bool`	Direction of the radial clip sweep

Inner Shadow

Name	Type	Description
`innerShadowOffset`	`Vector2`	Pixel offset of the inner shadow
`innerShadowSize`	`float`	Expansion or contraction size
`innerShadowSoftness`	`float`	Blur radius of the inner shadow
`innerShadowColorMode`	`ColorMode`	`Base`, `Custom`, or `Gradient`
`innerShadowColor`	`Color`	Solid inner shadow color
`innerShadowGradient`	`Gradient`	Gradient used when mode is `Gradient`
`innerShadowGradientAngle`	`float`	Rotation of the gradient in degrees
`innerShadowGradientZoom`	`float`	Zoom factor for the gradient
`innerShadowGradientReverse`	`bool`	Swap the gradient start and end colors

Outer Shadow

Name	Type	Description
`outerShadowOffset`	`Vector2`	Pixel offset of the outer shadow
`outerShadowSize`	`float`	Expansion or contraction size
`outerShadowSoftness`	`float`	Blur radius of the outer shadow
`outerShadowColorMode`	`ColorMode`	`Base`, `Custom`, or `Gradient`
`outerShadowColor`	`Color`	Solid outer shadow color
`outerShadowGradient`	`Gradient`	Gradient used when mode is `Gradient`
`outerShadowGradientAngle`	`float`	Rotation of the gradient in degrees
`outerShadowGradientZoom`	`float`	Zoom factor for the gradient
`outerShadowGradientReverse`	`bool`	Swap the gradient start and end colors

Enums

Scale Mode

Value	Description
`Cover`	Fills the rect, cropping the sprite if needed
`Fit`	Preserves aspect ratio, leaving gaps if needed
`Stretch`	Ignores aspect ratio and fills the rect exactly

Raycast Mode

Value	Description
`None`	Disables raycasting entirely
`Standard`	Uses the rect bounds for hit detection
`Shape`	Uses the precise rounded and clipped geometry for hit detection

Clip Method

Value	Description
`None`	No clipping applied
`Horizontal`	Clips from the left or right edge
`Vertical`	Clips from the top or bottom edge
`Radial360`	Sweeps a radial clip around the full 360°

Color Mode

Value	Description
`Base`	Inherits from the graphic's `color` property
`Custom`	Uses the dedicated solid color field
`Gradient`	Samples from a baked gradient texture

Radius Mode

Value	Description
`Pixels`	Corner radius is expressed in screen pixels
`Percentage`	Corner radius is a percentage (0–100) of half the shortest rect side

Code Example

ProceduralRectExample.cs

using UnityEngine;
using Evo.UI;

public class ProceduralRectExample : MonoBehaviour
{
    public ProceduralRect rect;

    void Start()
    {
        // Set a sprite
        rect.sprite = mySprite;

        // Rounded card with a white fill
        rect.fillColorMode = ProceduralRect.ColorMode.Custom;
        rect.fillColor = Color.white;
        rect.cornerRadius = new Vector4(16, 16, 16, 16);

        // Subtle drop shadow
        rect.outerShadowOffset = new Vector2(0, -4);
        rect.outerShadowSoftness = 12f;
        rect.outerShadowColor = new Color(0, 0, 0, 0.25f);

        // Thin outline
        rect.outlineWidth = 1f;
        rect.outlineColorMode = ProceduralRect.ColorMode.Custom;
        rect.outlineColor = new Color(0, 0, 0, 0.1f);

        // Reveal the shape with a radial wipe
        rect.clipMethod = ProceduralRect.ClipMethod.Radial360;
        rect.clipAmount = 0.75f;

        // Update the rect to apply some changes that require vertices or material to be updated
        rect.UpdateRect();
    }
}
